Model building example

Dirac fermions coupled to an Ising model.

Introduction

The Physics

Nematic quantum criticality in Dirac systems: Schwab et al. (2022).

  • Nematic phase transition of Dirac Fermions

    • Break rotation symmetry without opening a gap
      ⇒\Rightarrow Allow meandering of Dirac cones

  • Continuous transitions

  • No emergent Lorentz symmetry

  • Very slow RG-flow
    ⇒\Rightarrow Numerical (and experimental) results do not represent IR fixed point
    ∙\bullet Quasiuniversality

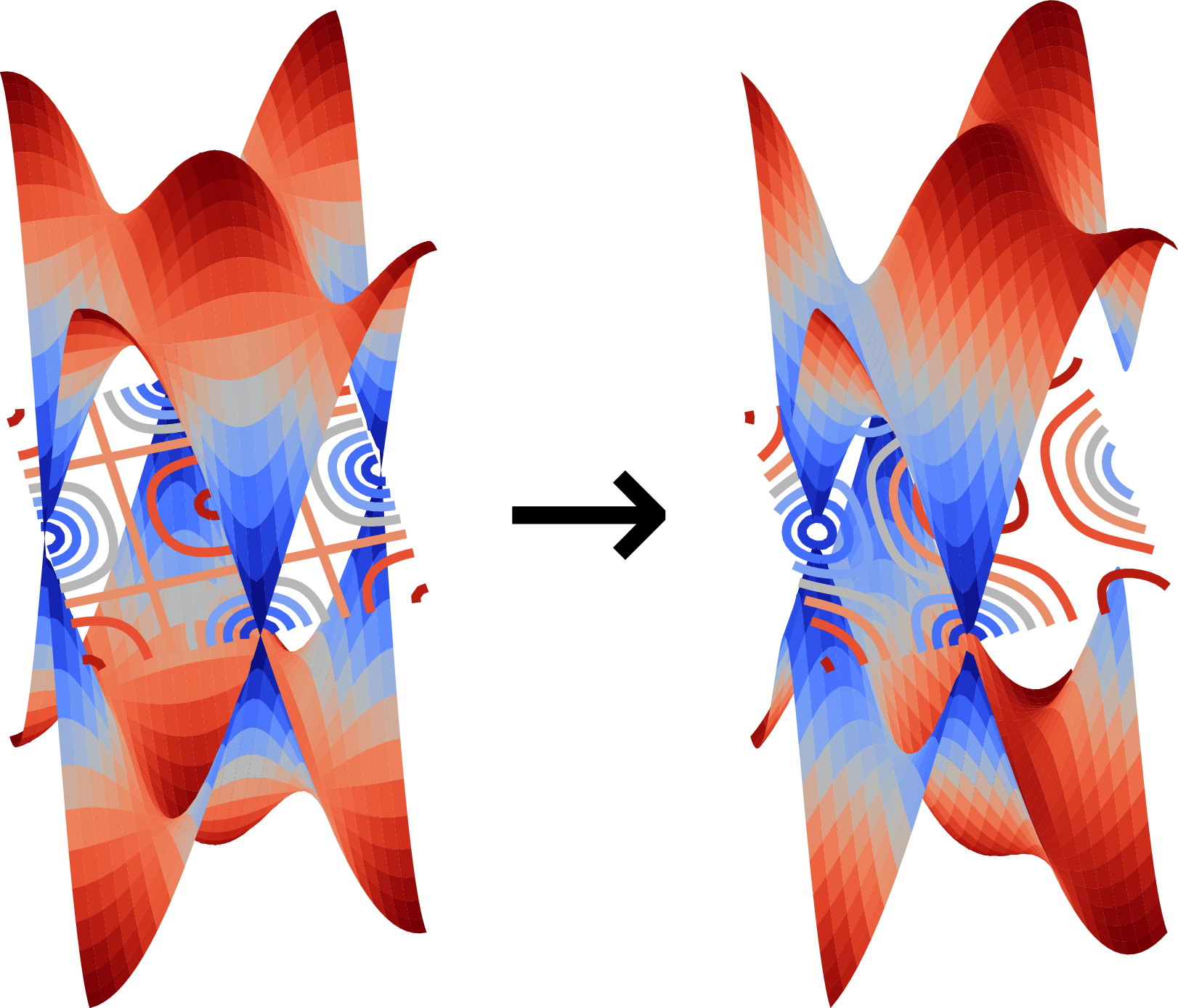

Display of nematic shift of dispersion.

Figure 1:Display of nematic shift of dispersion.

The Model

H=H0+HIsing+HYuk\mathcal{H} = \mathcal{H}_0 + \mathcal{H}_\text{Ising} + \mathcal{H}_\text{Yuk}
(1)
π-flux square latice

H0\mathcal{H}_0 Non-interacting Dirac fermions

  • π\pi-flux square lattice

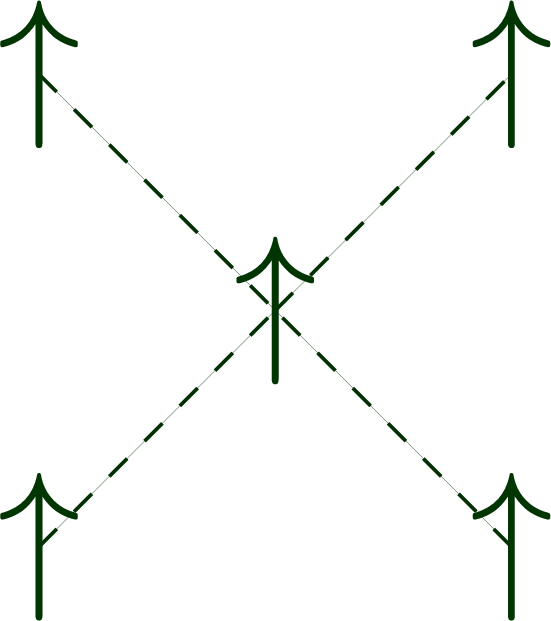

Transverse-field Ising model

HIsing\mathcal{H}_\text{Ising} Transverse-field Ising model

  • HIsing=−J∑⟨R,R′⟩s^Rzs^R′z−h∑Rs^Rx\mathcal{H}_\text{Ising} = -J \sum_{\langle \boldsymbol{R},\boldsymbol{R}' \rangle} \hat{s}_{\boldsymbol{R}}^z \hat{s}_{\boldsymbol{R}'}^z -h \sum_{\boldsymbol{R}} \hat{s}_{\boldsymbol{R}}^x

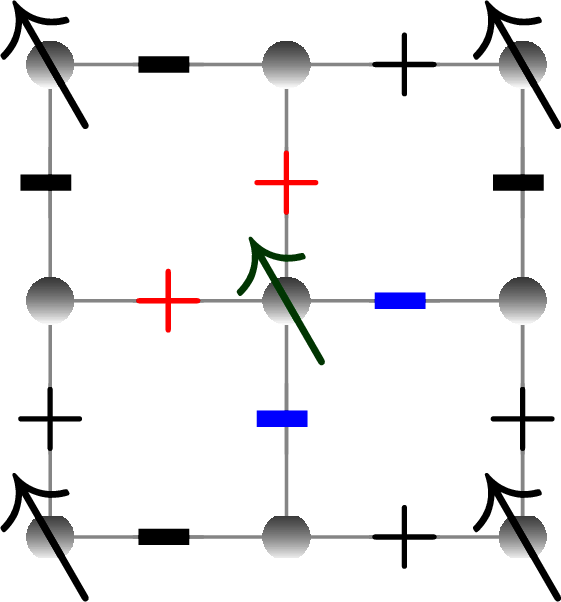

Yukawa interaction

HYuk\mathcal{H}_\text{Yuk} Yukawa interaction

  • Couple fermions to spins through terms of form αs^Rzc^R†c^R+δ\alpha \hat{s}_{\boldsymbol{R}}^z \hat{c}^\dag_{\boldsymbol{R}} \hat{c}_{\boldsymbol{R}+\boldsymbol{\delta}}

Map to ALF Hamiltonian

H^=H^T+H^V+H^I+H^Q+H^0,I ,  whereH^T=∑k=1MT∑σ=1Ncol∑s=1Nfl∑x,yNdimc^xσs†Txy(ks)c^yσs†≡∑k=1MTT^(k) ,H^V=∑k=1MVUk{∑σ=1Ncol∑s=1Nfl[(∑x,yNdimc^xσs†Vxy(ks)c^yσs†)+αks]}2≡∑k=1MVUk(V^(k))2 ,H^I=∑k=1MIZ^k(∑σ=1Ncol∑s=1Nfl∑x,yNdimc^xσs†Ixy(ks)c^yσs†)≡∑k=1MIZ^kI^(k) , H^Q=∑k=1MQU~k(1+Q^k){∑σ=1Ncol∑s=1Nfl[(∑x,yNdimc^xσs†V~xy(ks)c^yσs†)+α~ks]}2 .\begin{align} \hat{\mathcal{H}} &= \hat{\mathcal{H}}_{T}+\hat{\mathcal{H}}_{V} + \hat{\mathcal{H}}_{I} + \hat{\mathcal{H}}_{Q} + \hat{\mathcal{H}}_{0,I}\,,\;\text{where} \\ \hat{\mathcal{H}}_{T} &= \sum\limits_{k=1}^{M_T} \sum\limits_{\sigma=1}^{N_{\mathrm{col}}} \sum\limits_{s=1}^{N_{\mathrm{fl}}} \sum\limits_{x,y}^{N_{\mathrm{dim}}} \hat{c}^{\dagger}_{x \sigma s}T_{xy}^{(k s)} \hat{c}^{\phantom\dagger}_{y \sigma s} \equiv \sum\limits_{k=1}^{M_T} \hat{T}^{(k)} \,,\\ \hat{\mathcal{H}}_{V} &= \sum\limits_{k=1}^{M_V}U_{k} \left\{ \sum\limits_{\sigma=1}^{N_{\mathrm{col}}} \sum\limits_{s=1}^{N_{\mathrm{fl}}} \left[ \left( \sum\limits_{x,y}^{N_{\mathrm{dim}}} \hat{c}^{\dagger}_{x \sigma s}V_{xy}^{(k s)}\hat{c}^{\phantom\dagger}_{y \sigma s} \right) +\alpha_{k s} \right] \right\}^{2} \equiv \sum\limits_{k=1}^{M_V}U_{k} \left(\hat{V}^{(k)} \right)^2 \,,\\ \hat{\mathcal{H}}_{I} & = \sum\limits_{k=1}^{M_I} \hat{Z}_{k} \left( \sum\limits_{\sigma=1}^{N_{\mathrm{col}}} \sum\limits_{s=1}^{N_{\mathrm{fl}}} \sum\limits_{x,y}^{N_{\mathrm{dim}}} \hat{c}^{\dagger}_{x \sigma s} I_{xy}^{(k s)}\hat{c}^{\phantom\dagger}_{y \sigma s} \right) \equiv \sum\limits_{k=1}^{M_I} \hat{Z}_{k} \hat{I}^{(k)} \, , \, \\ \hat{\mathcal{H}}_{Q} & = \sum\limits_{k=1}^{M_Q} \tilde{U}_{k} \left( 1 + \hat{Q}_k \right) \left\{ \sum\limits_{\sigma=1}^{N_{\mathrm{col}}} \sum\limits_{s=1}^{N_{\mathrm{fl}}} \left[ \left( \sum\limits_{x,y}^{N_{\mathrm{dim}}} \hat{c}^{\dagger}_{x \sigma s}\tilde{V}_{xy}^{(k s)}\hat{c}^{\phantom\dagger}_{y \sigma s} \right) +\tilde{\alpha}_{k s} \right] \right\}^{2} \,. \end{align}
(2)
⇒H0=H^THYuk=H^IHIsing=H^0,I\begin{aligned} &\Rightarrow & \mathcal{H}_0 &= \hat{\mathcal{H}}_{T} & \mathcal{H}_\text{Yuk} &= \hat{\mathcal{H}}_{I} & \mathcal{H}_\text{Ising} &= \hat{\mathcal{H}}_{0,I} & \end{aligned}
(3)

Write Hamiltonian

Goal: Write a new Hamiltonian called Nematic_Dirac_demo

Steps necessary:

  1. Create Hamiltonian_Nematic_Dirac_demo_smod.F90 in Prog/Hamiltonians/

    • Define parameters

    • Create lattice

    • Set up hopping

    • Set up interaction

      • Op_V

      • S0

    • Define observables

  2. Add Nematic_Dirac_demo to Prog/Hamiltonians.list

Copy template

cp Hamiltonian_##NAME##_smod.F90 Hamiltonian_Nematic_Dirac_demo_smod.F90

Replace all occurrences of ##NAME## with Nematic_Dirac_demo

Add optional procedure S0 to enable Ising dynamics
        procedure, nopass :: S0

Define parameters

Parameter block
      !#PARAMETERS START# VAR_Nematic_Dirac
      !Integer :: N_SUN = 2       ! SU(N) symmetry
      real(Kind=Kind(0.d0)) :: Dtau = 0.1d0    ! Imaginary time step size
      real(Kind=Kind(0.d0)) :: beta = 10.d0    ! Reciprocal temperature
      Integer  :: L1 = 4          ! Size of lattice in a1 direction
      Integer  :: L2 = 4          ! Size of lattice in a2 direction
      real(Kind=Kind(0.d0)) :: ham_t = 1.d0    ! Hopping amplitude of fermions
      real(Kind=Kind(0.d0)) :: Ham_h = 3.d0    ! Ising transverse field
      real(Kind=Kind(0.d0)) :: Ham_J = 1.d0    ! Ferromagnetic Ising interaction
      real(Kind=Kind(0.d0)) :: Ham_xi = 1.d0   ! Coupling Ising spins <-> fermions
      real(Kind=Kind(0.d0)) :: Ham_chem = 0.d0 ! Chemical potential
      !#PARAMETERS END#

Test with

../parse_ham.py --test_file Hamiltonian_Nematic_Dirac_demo_smod.F90
Declare additional Hamiltonian-wide variables
      Type (Unit_cell), target :: latt_unit_ising

      !> Constanst for the Ising action
      Integer                :: N_ising
      Real (Kind=Kind(0.d0)) :: DW_Ising_tau(-1:1), DW_Ising_Space(-1:1)
      Integer, allocatable   :: Ising_nnlist(:,:)

      !>    Private variables for observing Z_x_ising
      Real (Kind=Kind(0.d0)) :: eq_x_ising, neq_x_ising

      !> Counting measurements
      Integer :: n_measure = 0

Populate Ham_set body:

Ham_set body
          ! From dynamically generated file "Hamiltonian_Nematic_Dirac_read_write_parameters.F90"
          call read_parameters()

          ! Set fixed parameters of Main Hamiltonian
          N_FL = 1
          Ltrot = nint(beta/dtau)
          Projector = .false.
          Thtrot = 0
          Symm = .false.

          ! Setup the Bravais lattice
          call Ham_Latt

          ! Setup the hopping / single-particle part
          call Ham_Hop

          ! Setup the interaction.
          call Ham_V()
          call Setup_Ising_action
Write parameters to info file
             Open(newunit=unit_info, file=file_info, status="unknown", position="append")
             Write(unit_info,*) '====================================='
             Write(unit_info,*) 'Model is            : ', 'Nematic_Dirac'
             Write(unit_info,*) 'L1                  : ', L1
             Write(unit_info,*) 'L2                  : ', L2
             Write(unit_info,*) 'N_SUN               : ', N_SUN
             Write(unit_info,*) 'ham_t               : ', ham_t
             Write(unit_info,*) 'dtau                : ', dtau
             Write(unit_info,*) 'beta                : ', beta
             Write(unit_info,*) 'Ham_h               : ', Ham_h
             Write(unit_info,*) 'Ham_J               : ', Ham_J
             Write(unit_info,*) 'Ham_xi              : ', Ham_xi
             Write(unit_info,*) 'Ham_chem            : ', Ham_chem
             Close(unit_info)

Lattice

Create Lattice

Bravais lattice:

a1=(11)a2=(1−1)\begin{aligned} \mathbf{a}_1 &= \begin{pmatrix} 1 \\ 1 \end{pmatrix} & \mathbf{a}_2 &= \begin{pmatrix} 1 \\ -1 \end{pmatrix} \end{aligned}
(4)

Unit cell:

Fermions:(00),(01)Ising spins:(00)\begin{aligned} \text{Fermions:} & \begin{pmatrix} 0 \\ 0 \end{pmatrix}, \begin{pmatrix} 0 \\ 1 \end{pmatrix} \\ \text{Ising spins:} & \begin{pmatrix} 0 \\ 0 \end{pmatrix} \end{aligned}
(5)
Fermion lattice

(a)Fermion lattice

Ising lattive

(b)Ising lattive

Lattice code
        subroutine ham_latt()
            implicit none

            Real (Kind=Kind(0.d0))  :: a1_p(2), a2_p(2), L1_p(2), L2_p(2)
            Integer :: I, nc, no

            latt_unit%Norb = 2
            latt_unit%N_coord = 4
            allocate(latt_unit%orb_pos_p(2, 2))
            latt_unit%orb_pos_p(1, :) = [0.D0,  0.D0]
            latt_unit%orb_pos_p(2, :) = [0.D0,  1.D0]

            latt_unit_ising%Norb = 1
            latt_unit_ising%N_coord = 2
            allocate(latt_unit_ising%orb_pos_p(1, 2))
            latt_unit_ising%orb_pos_p(1, :) = [0.D0,  0.D0]

            a1_p(:) = [1.D0,  1.D0]
            a2_p(:) = [1.D0, -1.D0]
            L1_p    = dble(L1)*a1_p
            L2_p    = dble(L2)*a2_p
            Call Make_Lattice( L1_p, L2_p, a1_p,  a2_p, Latt)
            If ( L1 == 1 .or. L2 == 1 ) then
              Write(error_unit,*) 'One dimensional systems not implemented'
              error stop
            endif

            ! Ndim is needed by the Monte Carlo core!
            Ndim = Latt%N*latt_unit%Norb

            ! This is for the orbital structure.
            Allocate (List(Ndim,2), Invlist(Latt%N, latt_unit%Norb))
            nc = 0
            Do I = 1, Latt%N
              Do no = 1, latt_unit%Norb
                nc = nc + 1
                List(nc,1) = I
                List(nc,2) = no
                Invlist(I,no) = nc
              Enddo
            Enddo
          end subroutine ham_latt

Hopping

H0=−t∑R∑σ=1Nσa^R,σ†(b^R,σe−iπ4+b^R+e−,σeiπ4+b^R+e−−e+,σe−iπ4+b^R−e+,σeiπ4)+h.c.,\begin{aligned} \mathcal{H}_0 & = -t\sum_{\boldsymbol{R}} \sum_{\sigma=1}^{N_\sigma} \hat{a}_{\boldsymbol{R},\sigma}^\dag \Big( \hat{b}_{\boldsymbol{R},\sigma} \mathrm{e}^{-i\tfrac{\pi}{4}} + \hat{b}_{\boldsymbol{R}+\boldsymbol{e}_-,\sigma} \mathrm{e}^{ i\tfrac{\pi}{4}} \nonumber \\ &\quad + \hat{b}_{\boldsymbol{R}+\boldsymbol{e}_--\boldsymbol{e}_+,\sigma} \mathrm{e}^{-i\tfrac{\pi}{4}} + \hat{b}_{\boldsymbol{R}-\boldsymbol{e}_+,\sigma} \mathrm{e}^{ i\tfrac{\pi}{4}} \Big) + \mathrm{h.c.}, \end{aligned}
(6)

Sum over σ\sigma is builtin.

Set hopping operator Op_T
        subroutine ham_hop()
            implicit none

            Integer :: I, I1, J1, nc1
            complex (Kind=Kind(0.d0)) :: t_temp

            allocate(Op_T(1, N_FL))
            Call Op_make(Op_T(1, 1), Ndim)

            DO I = 1, Latt%N
              I1 = Invlist(I,1)
              Do nc1 = 1, 4
                select case (nc1)
                case (1)
                  J1 = invlist(Latt%nnlist(I, 0, 0), 2)
                  t_temp = -Ham_T * cmplx(1, -1, kind(0.D0))/sqrt(2.D0)
                case (2)
                  J1 = invlist(Latt%nnlist(I, 0, 1), 2)
                  t_temp = -Ham_T * cmplx(1,  1, kind(0.D0))/sqrt(2.D0)
                case (3)
                  J1 = invlist(Latt%nnlist(I, -1, 1), 2)
                  t_temp = -Ham_T * cmplx(1, -1, kind(0.D0))/sqrt(2.D0)
                case (4)
                  J1 = invlist(Latt%nnlist(I, -1, 0), 2)
                  t_temp = -Ham_T * cmplx(1,  1, kind(0.D0))/sqrt(2.D0)
                end select
                Op_T(1, 1)%O(I1,J1) = t_temp
                Op_T(1, 1)%O(J1,I1) = conjg(t_temp)
              Enddo
            Enddo

            Do I = 1,Ndim
               Op_T(1,1)%P(i) = i
               Op_T(1,1)%O(i,i) = cmplx(-Ham_chem, 0.d0, kind(0.D0))
            Enddo
            Op_T(1,1)%g = -Dtau
            Op_T(1,1)%alpha=cmplx(0.d0,0.d0, kind(0.D0))
            Call Op_set(Op_T(1,1))
          end subroutine ham_hop

Interaction

HYuk=−ξ∑R∑σ=1Nσs^Rza^R,σ†(b^R,σe−iπ4−b^R+e−,σeiπ4−b^R+e−−e+,σe−iπ4+b^R−e+,σeiπ4)+h.c.,\begin{aligned} \mathcal{H}_\text{Yuk} & = -\xi \sum_{\boldsymbol{R}} \sum_{\sigma=1}^{N_\sigma} \hat{s}_{\boldsymbol{R}}^z \hat{a}^\dag_{\boldsymbol{R},\sigma} \Big( \hat{b}_{\boldsymbol{R},\sigma} \mathrm{e}^{-i\tfrac{\pi}{4}} - \hat{b}_{\boldsymbol{R}+\boldsymbol{e}_-,\sigma} \mathrm{e}^{ i\tfrac{\pi}{4}} \nonumber\\ &\quad - \hat{b}_{\boldsymbol{R}+\boldsymbol{e}_--\boldsymbol{e}_+,\sigma} \mathrm{e}^{-i\tfrac{\pi}{4}} + \hat{b}_{\boldsymbol{R}-\boldsymbol{e}_+,\sigma} \mathrm{e}^{ i\tfrac{\pi}{4}} \Big) + \mathrm{h.c.}, \end{aligned}
(7)

Sum over σ\sigma is builtin.

Set interaction operator Op_V
        subroutine Ham_V()
            implicit none
            integer :: I, J1, nc1
            complex (Kind=Kind(0.d0)) :: t_temp

            Allocate(Op_V(Latt%N, N_FL))
            do I = 1, Latt%N
              call Op_make(Op_V(I, 1), 5)
              Op_V(I, 1)%P(1) = Invlist(I,1)
              Do nc1 = 1, 4
                select case (nc1)
                case (1)
                  J1 = invlist(Latt%nnlist(I, 0, 0), 2)
                  t_temp = -cmplx(1, -1, kind(0.D0))/sqrt(2.D0)
                case (2)
                  J1 = invlist(Latt%nnlist(I, 0, 1), 2)
                  t_temp =  cmplx(1,  1, kind(0.D0))/sqrt(2.D0)
                case (3)
                  J1 = invlist(Latt%nnlist(I, -1, 1), 2)
                  t_temp =  cmplx(1, -1, kind(0.D0))/sqrt(2.D0)
                case (4)
                  J1 = invlist(Latt%nnlist(I, -1, 0), 2)
                  t_temp = -cmplx(1,  1, kind(0.D0))/sqrt(2.D0)
                end select
                Op_V(I, 1)%P(nc1+1) = J1
                Op_V(I, 1)%O(1   ,nc1+1) = t_temp
                Op_V(I, 1)%O(nc1+1,1   ) = conjg(t_temp)
              Enddo
              Op_V(I, 1)%g     = cmplx(-dtau*ham_xi,0.d0, kind(0.D0))
              Op_V(I, 1)%alpha = cmplx(0.d0,0.d0, kind(0.D0))
              Op_V(I, 1)%type  = 1  ! Set to Ising type interaction
              Call Op_set( Op_V(I, 1) )
            Enddo

          end subroutine Ham_V

Ising action

HIsing=−J∑⟨R,R′⟩s^Rzs^R′z−h∑Rs^Rx,\begin{aligned} \mathcal{H}_\text{Ising} = -J \sum_{\langle \boldsymbol{R},\boldsymbol{R}' \rangle} \hat{s}_{\boldsymbol{R}}^z \hat{s}_{\boldsymbol{R}'}^z -h \sum_{\boldsymbol{R}} \hat{s}_{\boldsymbol{R}}^x, \end{aligned}
(8)
Mapping to dd+1-dimensional classical Ising model

Trotter decomposition:

Z=Tr[exp⁡(−βHIsing)]Z=∑Φ⟨Φ | (exp⁡(ΔτJ∑⟨R,R′⟩s^Rzs^R′z)exp⁡(Δτh∑Rs^Rx))Lτ | Φ⟩+O(Δτ2)\begin{align*} Z &= \text{Tr}\left[\exp(-\beta H_\text{Ising})\right] \\ Z &= \sum_\Phi \Braket{\Phi | \left( \exp\left(\Delta_{\tau} J \sum_{\langle \boldsymbol{R}, \boldsymbol{R}' \rangle} \hat{s}^z_{\boldsymbol{R}} \hat{s}^z_{\boldsymbol{R}'} \right) \exp\left(\Delta_\tau h\sum_{\boldsymbol{R}} \hat{s}^x_{\boldsymbol{R}} \right) \right) ^{L_\tau} |\Phi} + \mathcal{O}({\Delta_\tau}^2) \end{align*}
(9)

State: dd →\rightarrow d+1d+1 dimensions

Z=∑C∏t=1Lτ[exp⁡(ΔτJ∑R,RsR,tzsR′,tz)⟨Φt | exp⁡(hΔτ∑Rs^Rx) | Φt+1⟩]\begin{align*} Z &= \sum_{C} \prod_{t=1}^{L_\tau} \left[ \exp\left(\Delta_\tau J \sum_{\boldsymbol{R},\boldsymbol{R}} s_{\boldsymbol{R},t}^z s_{\boldsymbol{R}',t}^z \right) \Braket{\Phi_t | \exp\left(h \Delta_\tau \sum_{\boldsymbol{R}} \hat{s}^x_{\boldsymbol{R}} \right) | \Phi_{t+1} } \right] \end{align*}
(10)

Ising action

Z=λNLτ∑Ce−SIsing(C)+O(Δτ2)e−SIsing(C)=∏t=1Lτ[exp⁡(ΔτJ∑R,R′sR,tzsR′,tz)exp⁡(γ∑RsR,tzsR,t+1z)]γ=−12ln⁡(tanh⁡ hΔτ)λ=sinh⁡(hΔτ)cosh⁡(hΔτ)\begin{aligned} &Z = \lambda^{N L_\tau} \sum_{C} e^{-S_{\text{Ising}}(C)} + \mathcal{O}({\Delta_\tau}^2)\\ &e^{-S_{\text{Ising}}(C)} = \prod_{t=1}^{L_\tau} \left[ \exp\left(\Delta_\tau J \sum_{\boldsymbol{R},\boldsymbol{R}'} s_{\boldsymbol{R},t}^z s_{\boldsymbol{R}',t}^z \right) \exp\left( \gamma\sum_{\boldsymbol{R}} s^z_{\boldsymbol{R},t} s^z_{\boldsymbol{R},t+1} \right) \right] \\ &\qquad \gamma = -\tfrac{1}{2}\ln( \tanh\, h\Delta_\tau) \qquad \lambda = \sqrt{\sinh(h\Delta_\tau)\cosh(h\Delta_\tau)} \end{aligned}
(11)

Single spin flip:

e−SIsing(Cnew)e−SIsing(Cold)={tanh⁡(Δτh)sR,tzsR,t+1z:1→−11/tanh⁡(Δτh)sR,tzsR,t+1z:−1→1exp⁡(−2ΔτJ)sR,tzsR′,tz:1→−1exp⁡(2ΔτJ)sR,tzsR′,tz:−1→1\begin{aligned} \frac{e^{-S_{\text{Ising}}(C_\text{new})}} {e^{-S_{\text{Ising}}(C_\text{old})}} = \left\{ \begin{array}{ll} \tanh(\Delta_\tau h) & s^z_{\boldsymbol{R},t} s^z_{\boldsymbol{R},t+1}: 1 \rightarrow -1 \\ 1/\tanh(\Delta_\tau h) & s^z_{\boldsymbol{R},t} s^z_{\boldsymbol{R},t+1}: -1 \rightarrow 1 \\ \exp(-2 \Delta_\tau J) & s_{\boldsymbol{R},t}^z s_{\boldsymbol{R}',t}^z: 1 \rightarrow -1 \\ \exp(2 \Delta_\tau J) & s_{\boldsymbol{R},t}^z s_{\boldsymbol{R}',t}^z: -1 \rightarrow 1 \end{array} \right. \end{aligned}
(12)
Code for Ising action
        Subroutine Setup_Ising_action()
          ! This subroutine sets up lists and arrays to enable an
          ! an efficient calculation of  S0(n,nt)

          Implicit none
          Integer :: I

          allocate(Ising_nnlist(Latt%N,4))
          N_ising = Latt%N
          do I = 1, Latt%N
            Ising_nnlist(I,1) = Latt%nnlist(I, 1, 0)
            Ising_nnlist(I,2) = Latt%nnlist(I, 0, 1)
            Ising_nnlist(I,3) = Latt%nnlist(I,-1, 0)
            Ising_nnlist(I,4) = Latt%nnlist(I, 0,-1)
          enddo

          ! exp(-S0(new))/exp(-S0(old)) of one Ising bond. Index is sa*sb
          DW_Ising_tau  ( 1) = tanh(Dtau*Ham_h)
          DW_Ising_tau  (-1) = 1.D0/DW_Ising_tau(1)
          DW_Ising_Space( 1) = exp(-2.d0*Dtau*Ham_J)
          DW_Ising_Space(-1) = exp( 2.d0*Dtau*Ham_J)
        End Subroutine Setup_Ising_action


!===================================================================================
!--------------------------------------------------------------------
!> @author
!> ALF Collaboration
!>
!> @brief
!> Single spin flip S0 ratio
!> @details
!> S0=exp(-S0(new))/exp(-S0(old)) where the new configuration correpsonds to the old one up to
!> a spin flip of Operator n on time slice nt
!> @details
!--------------------------------------------------------------------
        Real (Kind=Kind(0.d0)) function S0(n,nt,Hs_new)
          Implicit none
          !> Operator index
          Integer, Intent(IN) :: n
          !> Time slice
          Integer, Intent(IN) :: nt
          !> New local field on time slice nt and operator index n
          Complex(Kind=Kind(0.d0)), Intent(In) :: Hs_new

          Integer :: nt1,I
          S0 = 1.d0
          If ( Op_V(n,1)%type == 1 ) then
              do i = 1,4
                S0 = S0*DW_Ising_space(nsigma%i(n,nt)*nsigma%i(Ising_nnlist(n,i),nt))
              enddo
              nt1 = nt +1
              if (nt1 > Ltrot) nt1 = 1
              S0 = S0*DW_Ising_tau(nsigma%i(n,nt)*nsigma%i(n,nt1))
              nt1 = nt - 1
              if (nt1 < 1  ) nt1 = Ltrot
              S0 = S0*DW_Ising_tau(nsigma%i(n,nt)*nsigma%i(n,nt1))
              If (S0 < 0.d0) Write(6,*) 'S0 : ', S0
          endif
        end function S0


!--------------------------------------------------------------------
!> @author
!> ALF Collaboration
!>
!> @brief
!> Computes the ratio exp(S0(new))/exp(S0(old))
!>
!> @details
!> This function computes the ratio \verbatim  e^{-S0(nsigma)}/e^{-S0(nsigma_old)} \endverbatim
!> @param [IN] nsigma_old,  Type(Fields)
!> \verbatim
!>  Old configuration. The new configuration is stored in nsigma.
!> \endverbatim
!-------------------------------------------------------------------
        Real (Kind=kind(0.d0)) Function Delta_S0_global(nsigma_old)
          !>  This function computes the ratio:  e^{-S0(nsigma%f)}/e^{-S0(nsigma_old)}
          Implicit none

          !> Arguments
          type(fields), intent(in) :: nsigma_old

          !> Local
          Integer :: I, nt, nt1, I1, I2, nc_J, nc_h_p, nc_h_m

          Delta_S0_global = 1.D0
          nc_J = 0    ! Number of parallel minus number of anti-parallel Ising bonds in space
          nc_h_p = 0  ! Number of parallel Ising bonds in time
          nc_h_m = 0  ! Number of anti-parallel Ising bonds in time

          Do I = 1, latt%N
            I1 = latt%nnlist(I,1,0)
            I2 = latt%nnlist(I,0,1)
            Do nt = 1,Ltrot
                nt1 = nt + 1
                if (nt == Ltrot) nt1 = 1
                if (nsigma%i(I,nt) == nsigma%i(I,nt1) ) then
                  nc_h_p = nc_h_p + 1
                else
                  nc_h_m = nc_h_m + 1
                endif
                if (nsigma_old%i(I,nt) == nsigma_old%i(I,nt1) ) then
                  nc_h_p = nc_h_p - 1
                else
                  nc_h_m = nc_h_m - 1
                endif

                nc_J = nc_J + nsigma%i(I,nt)*nsigma%i(I1,nt) &
                    &      + nsigma%i(I,nt)*nsigma%i(I2,nt) &
                    &      - nsigma_old%i(I,nt)*nsigma_old%i(I1,nt) &
                    &      - nsigma_old%i(I,nt)*nsigma_old%i(I2,nt)
            enddo
          enddo

          Delta_S0_global = ( sinh(Dtau*Ham_h)**nc_h_m ) * (cosh(Dtau*Ham_h)**nc_h_p) &
                  &         * exp( Dtau * Ham_J*real(nc_J,kind(0.d0)))
        end Function Delta_S0_global

Define Observables

Alloc_obs

Create Observables: Alloc_obs Allocate the storage space for Observables

Body of Alloc_obs
          ! Scalar observables
          Allocate ( Obs_scal(5) )
          Do I = 1,Size(Obs_scal,1)
            select case (I)
            case (1)
              N = 1;   Filename ="Part"
            case (2)
              N = 1;   Filename ="ising_z"
            case (3)
              N = 3;   Filename ="Kin_Pot_E"
            case (4)
              N = 1;   Filename ="ising_x"
              eq_x_ising  = tanh(Dtau*Ham_h)
              neq_x_ising = 1/tanh(Dtau*Ham_h)
            case (5)
              N = 3;   Filename ="m"
            case default
              Write(6,*) ' Error in Alloc_obs scal'
            end select
            call Obser_Vec_make(Obs_scal(I), N, Filename)
          enddo


          ! Equal time correlators
          Allocate ( Obs_eq(6) )
          Channel = '--'
          Do I = 1,Size(Obs_eq,1)
            select case (I)
            case (1)
              Filename ="IsingX"
              Nt = 1
              call Obser_Latt_make(Obs_eq(I), Nt, Filename, Latt, Latt_unit_ising, Channel, dtau)
            case (2)
              Filename ="IsingZ"
              Nt = 1
              call Obser_Latt_make(Obs_eq(I), Nt, Filename, Latt, Latt_unit_ising, Channel, dtau)
            case (3)
              Filename ="Green"
              Nt = 1
              call Obser_Latt_make(Obs_eq(I), Nt, Filename, Latt, Latt_unit, Channel, dtau)
            case (4)
              Filename ="Den"
              Nt = 1
              call Obser_Latt_make(Obs_eq(I), Nt, Filename, Latt, Latt_unit, Channel, dtau)
            case (5)
              Filename ="IsingZT"
              Nt = Ltrot+1
              call Obser_Latt_make(Obs_eq(I), Nt, Filename, Latt, Latt_unit_ising, Channel, dtau)
            case (6)
              Filename ="IsingXT"
              Nt = Ltrot+1
              call Obser_Latt_make(Obs_eq(I), Nt, Filename, Latt, Latt_unit_ising, Channel, dtau)
            case default
              Write(6,*) ' Error in Alloc_obs eq'
            end select
          enddo

          If (Ltau == 1) then
             ! Equal time correlators
             Allocate ( Obs_tau(2) )
             Do I = 1,Size(Obs_tau,1)
                select case (I)
                case (1)
                  Filename ="Green"
                case (2)
                  Filename ="Den"
                case default
                   Write(6,*) ' Error in Alloc_obs tau'
                end select
                Nt = Ltrot+1
                Channel = '--'
                call Obser_Latt_make(Obs_tau(I), Nt, Filename, Latt, Latt_unit, Channel, dtau)
             enddo
          endif
Generic funtion for kinetic energy
        function E_kin(GRC)
            Implicit none
            Complex (Kind=Kind(0.d0)), intent(in) :: GRC(Ndim,Ndim,N_FL)

            Complex (Kind=Kind(0.d0)) :: E_kin

            Integer :: n, nf, I, J

            E_kin = cmplx(0.d0, 0.d0, kind(0.D0))
            Do n  = 1,Size(Op_T,1)
               Do nf = 1,N_FL
                  Do I = 1,Size(Op_T(n,nf)%O,1)
                     Do J = 1,Size(Op_T(n,nf)%O,2)
                        E_kin = E_kin + Op_T(n,nf)%O(i, j)*Grc( Op_T(n,nf)%P(I), Op_T(n,nf)%P(J), nf )
                     ENddo
                  Enddo
               Enddo
            Enddo
            E_kin = E_kin * dble(N_SUN)
         end function E_kin

Obser

Calculate equal time observables: Obser

Scalar observables

Correlation functions

Body of Obser
          Complex (Kind=Kind(0.d0)) :: Z_z_ising, Z_x_ising, Z_m
          Complex (Kind=Kind(0.d0)) :: Zkin, Zpot, Zrho
          Integer :: nc1, imj, nt1, nt, dnt, Ntau1, n, I1

          ZP = PHASE/Real(Phase, kind(0.D0))
          ZS = Real(Phase, kind(0.D0))/Abs(Real(Phase, kind(0.D0)))

          ZS = ZS*Mc_step_weight

          allocate(GRC(Ndim,Ndim,N_FL))

          Do nf = 1,N_FL
             Do I = 1,Ndim
                Do J = 1,Ndim
                   GRC(I, J, nf) = -GR(J, I, nf)
                Enddo
                GRC(I, I, nf) = 1.D0 + GRC(I, I, nf)
             Enddo
          Enddo
          ! GRC(i,j,nf) = < c^{dagger}_{i,nf } c_{j,nf } >

          ! Compute scalar observables.
          Do I = 1,Size(Obs_scal,1)
            Obs_scal(I)%N         =  Obs_scal(I)%N + 1
            Obs_scal(I)%Ave_sign  =  Obs_scal(I)%Ave_sign + Real(ZS,kind(0.d0))
         Enddo

          Z_z_ising = cmplx(0.d0, 0.d0, kind(0.D0))
          Z_x_ising = cmplx(0.d0, 0.d0, kind(0.D0))
          Z_m       = cmplx(0.d0, 0.d0, kind(0.D0))

          nt1 = Ntau+1; if ( Ntau == Ltrot ) nt1 = 1

          ! Particle number
          Zrho = cmplx(0.d0, 0.d0, kind(0.D0))
          do I = 1, Ndim
            Zrho = Zrho + Grc(i, i, 1)
          enddo
          Zrho = Zrho * dble(N_SUN)
          Obs_scal(1)%Obs_vec(1) = Obs_scal(1)%Obs_vec(1) + Zrho *ZP*ZS

          ! Kinetic energy
          Zkin = E_kin(GRC)

          ! Potential energy
          Zpot = cmplx(0.d0, 0.d0, kind(0.D0))
          do I = 1, size(Op_V, 1)
            I1 = Op_V(I,1)%P(1)
            do nc1 = 2, size( Op_V(I,1)%O, 1 )
              Zpot = Zpot + nsigma%f(I,Ntau) * GRC(I1, Op_V(I,1)%P(nc1) ,1) * Op_V(I,1)%O(1,nc1)
              Zpot = Zpot + nsigma%f(I,Ntau) * GRC(Op_V(I,1)%P(nc1), I1 ,1) * Op_V(I,1)%O(nc1,1)
            enddo
          enddo
          Zpot = Zpot * dble(N_SUN) * ham_t * ham_xi
          Obs_scal(3)%Obs_vec(1) = Obs_scal(3)%Obs_vec(1) + Zkin *ZP*ZS
          Obs_scal(3)%Obs_vec(2) = Obs_scal(3)%Obs_vec(2) + Zpot *ZP*ZS
          Obs_scal(3)%Obs_vec(3) = Obs_scal(3)%Obs_vec(3) + Zkin+Zpot *ZP*ZS


          do I = 1,Latt%N
            Z_z_ising = Z_z_ising + nsigma%f(I,Ntau)
            Z_m = Z_m + nsigma%f(1,Ntau)*nsigma%f(I,Ntau)

            if ( nsigma%f(I,nt1) == nsigma%f(I,Ntau) ) then
              Z_x_ising = Z_x_ising + eq_x_ising
            else
              Z_x_ising = Z_x_ising + neq_x_ising
            endif
          enddo
          Z_z_ising = Z_z_ising/Latt%N
          Z_x_ising = Z_x_ising/Latt%N
          Z_m = Z_m/Latt%N

          Obs_scal(2)%Obs_vec(1) = Obs_scal(2)%Obs_vec(1) + Z_z_ising *ZP*ZS
          Obs_scal(4)%Obs_vec(1) = Obs_scal(4)%Obs_vec(1) + Z_x_ising *ZP*ZS
          Obs_scal(5)%Obs_vec(1) = Obs_scal(5)%Obs_vec(1) + Z_m *ZP*ZS
          Obs_scal(5)%Obs_vec(2) = Obs_scal(5)%Obs_vec(2) + Z_m**2 *ZP*ZS
          Obs_scal(5)%Obs_vec(3) = Obs_scal(5)%Obs_vec(3) + Z_m**4 *ZP*ZS



          ! Compute equal-time correlations
          ! counting up correlation functions
          ! DO I = 1,Size(Obs_eq,1)
          DO I = 1,2
            Obs_eq(I)%N        = Obs_eq(I)%N + 1
            Obs_eq(I)%Ave_sign = Obs_eq(I)%Ave_sign + real(ZS,kind(0.d0))
          ENDDO

          ! Compute Ising X-X and Z-Z correlation functions
          nt1 = Ntau+1; if ( Ntau == Ltrot ) nt1 = 1
          Do I = 1,Latt%N
            if ( nsigma%f(I,nt1) == nsigma%f(I,Ntau) ) then
              Z_x_ising = eq_x_ising
            else
              Z_x_ising = neq_x_ising
            endif
            Obs_eq(1)%Obs_Latt0(1) = Obs_eq(1)%Obs_Latt0(1) + Z_x_ising * ZP*ZS
            ! Improved estimator: <s_z> = 0
            ! Obs_eq(2)%Obs_Latt0(1) = Obs_eq(2)%Obs_Latt0(1) + nsigma%f(I,Ntau) * ZP*ZS
            Do J = 1,Latt%N
              imj = Latt%imj(I,J)
              Obs_eq(2)%Obs_Latt(imj,1,1,1) = Obs_eq(2)%Obs_Latt(imj,1,1,1) + nsigma%f(I,Ntau) * nsigma%f(J,Ntau) * ZP*ZS
              if ( nsigma%f(J,nt1) == nsigma%f(J,Ntau) ) then
                Obs_eq(1)%Obs_Latt(imj,1,1,1) = Obs_eq(1)%Obs_Latt(imj,1,1,1) + Z_x_ising * eq_x_ising  * ZP*ZS
              else
                Obs_eq(1)%Obs_Latt(imj,1,1,1) = Obs_eq(1)%Obs_Latt(imj,1,1,1) + Z_x_ising * neq_x_ising * ZP*ZS
              endif
            enddo
          enddo

          ! Compute Green-function
          call Predefined_Obs_eq_Green_measure( Latt, Latt_unit, List,  GR, GRC, N_SUN, ZS, ZP, Obs_eq(3) )

          ! Compute Density-Density correlations
          call Predefined_Obs_eq_Den_measure( Latt, Latt_unit, List,  GR, GRC, N_SUN, ZS, ZP, Obs_eq(4) )

         ! Computing time-displaced X-X and Z-Z correlation functions
          n_measure = n_measure + 1
          if ( n_measure == Ltrot ) then
            n_measure = 0

            DO I = 5,6
              Obs_eq(I)%N        = Obs_eq(I)%N + 1
              Obs_eq(I)%Ave_sign = Obs_eq(I)%Ave_sign + real(ZS,kind(0.d0))
            ENDDO

            Z_x_ising = cmplx(0.d0, 0.d0, kind(0.D0))
            Ntau1 = Ntau+1; if ( Ntau == Ltrot ) Ntau1 = 1

            do dnt= 0, Ltrot
              nt = Ntau + dnt
              if ( nt > Ltrot ) nt = nt - Ltrot
              nt1 = nt+1; if ( nt == Ltrot ) nt1 = 1
              do I = 1,Latt%N
                if ( nsigma%f(I,nt1) == nsigma%f(I,nt) ) then
                  Z_x_ising = eq_x_ising
                else
                  Z_x_ising = neq_x_ising
                endif
                ! Improved estimator: <s_z> = 0
                ! Obs_eq(5)%Obs_Latt0(1) = Obs_eq(5)%Obs_Latt0(1) + nsigma%f(I,nt) * ZP*ZS
                Obs_eq(6)%Obs_Latt0(1) = Obs_eq(6)%Obs_Latt0(1) + Z_x_ising    * ZP*ZS
                do J = 1,Latt%N
                  imj = Latt%imj(I,J)
                  Obs_eq(5)%Obs_Latt(imj,dnt+1,1,1) = Obs_eq(5)%Obs_Latt(imj,dnt+1,1,1) + nsigma%f(I,Ntau) * nsigma%f(J,nt) * ZP*ZS
                  if ( nt == Ntau .and. I == J ) then
                    Obs_eq(6)%Obs_Latt(imj,dnt+1,1,1) = Obs_eq(6)%Obs_Latt(imj,dnt+1,1,1) + 1  * ZP*ZS
                  elseif ( nsigma%f(J,Ntau1) == nsigma%f(J,Ntau) ) then
                    Obs_eq(6)%Obs_Latt(imj,dnt+1,1,1) = Obs_eq(6)%Obs_Latt(imj,dnt+1,1,1) + Z_x_ising * eq_x_ising  * ZP*ZS
                  else
                    Obs_eq(6)%Obs_Latt(imj,dnt+1,1,1) = Obs_eq(6)%Obs_Latt(imj,dnt+1,1,1) + Z_x_ising * neq_x_ising * ZP*ZS
                  endif
                enddo
              enddo
            enddo

          endif

ObserT

Calculate time-displaced observables: ObserT Analogous to equal time correlation functions

Body of ObserT
          call Predefined_Obs_tau_Green_measure( Latt, Latt_unit, List, NT, GT0,G0T,G00,GTT, N_SUN, ZS, ZP, Obs_tau(1) )
          call Predefined_Obs_tau_Den_measure( Latt, Latt_unit, List, NT, GT0,G0T,G00,GTT, N_SUN, ZS, ZP, Obs_tau(2) )

Finishing

#!/usr/bin/env python3
from py_alf import ALF_source, Simulation

# Point to ALF source directory
alf_src = ALF_source(alf_dir=".")

# Create a simulation object
sim = Simulation(
    alf_src,
    "Nematic_Dirac_demo",  # Hamiltonian name
    {},                    # Empty dictionary: default parameters
    machine='GNU',         # Compiler: 'GNU', 'intel', or 'PGI'
    devel=True,            # Development mode for debugging capabilities
)

sim.compile()
sim.run()
sim.analysis()
sim.print_info_file()
References
  1. Schwab, J., Janssen, L., Sun, K., Meng, Z. Y., Herbut, I. F., Vojta, M., & Assaad, F. F. (2022). Nematic Quantum Criticality in Dirac Systems. Phys. Rev. Lett., 128(15), 157203. 10.1103/PhysRevLett.128.157203
Using ALF
Predefined Observables
Using ALF
Analysis Tools
