Trotter systematic error - Hubbard on the square lattice

In this example we use the pyALF interface to run ALF with the Mz choice of Hubbard-Stratonovich transformation (i.e., coupled to the $z$ -component of the spin) on a $6\times 6$ site square lattice, at $U/t=4$ half-band filling, and inverse temperature $\beta t = 5$ .

We carry out a systematic $\Delta \tau t$ extrapolation keeping $\Delta \tau t L_\text{Trotter} = 2$ constant. Recall that the formulation of the auxiliary field QMC approach is based on the symmetric Trotter decomposition

e^{ -\Delta \tau \left( \hat{A} + \hat{B} \right) } = e^{ -\Delta \tau \hat{A}/2} e^{ -\Delta \tau \hat{B} } e^{ -\Delta \tau \hat{A}/2} + \mathcal{O} \left (\Delta \tau^3\right)

(1)

The overall error produced by this approximation is of the order $\Delta \tau^2$ .

Bellow we go through the steps for performing this extrapolation: setting the simulation parameters, running it and analysing the data. A reference plot for this analysis is found in ALF documentation, Sec. 2.3.2 (Symmetric Trotter decomposition).

1. Import Simulation class from the py_alf python module, which provides the interface with ALF, as well as mathematics and plotting packages:

from py_alf import ALF_source, Simulation # Interface with ALF
#
import numpy as np                        # Numerical library
from scipy.optimize import curve_fit      # Numerical library
import matplotlib.pyplot as plt           # Plotting library
alf_src = ALF_source(branch='master')     # Obtain ALF source code

2. Create instances of Simulation, specifying the necessary parameters, in particular the different $\Delta \tau$ values:

sims = []                                # Vector of Simulation instances
print('dtau values used:')
for dtau in [0.05, 0.1, 0.15]:            # Values of dtau
    print(dtau)
    sim = Simulation(
        alf_src,
        'Hubbard',                       # Hamiltonian
        {                                # Model and simulation parameters for each Simulation instance
        'Model': 'Hubbard',              #    Base model
        'Lattice_type': 'Square',        #    Lattice type
        'L1': 6,                         #    Lattice length in the first unit vector direction
        'L2': 6,                         #    Lattice length in the second unit vector direction
        'Checkerboard': False,           #    Whether checkerboard decomposition is used or not
        'Symm': True,                    #    Whether symmetrization takes place
        'ham_T': 1.0,                    #    Hopping parameter
        'ham_U': 4.0,                    #    Hubbard interaction
        'ham_Tperp': 0.0,                #    For bilayer systems
        'beta': 5.0,                     #    Inverse temperature
        'Ltau': 0,                       #    '1' for time-displaced Green functions; '0' otherwise
        'NSweep': 100,                   #    Number of sweeps per bin
        'NBin': 10,                      #    Number of bins
        'Dtau': dtau,                    #    Only dtau varies between simulations, Ltrot=beta/Dtau
        'Mz': True,                      #    If true, sets the M_z-Hubbard model: Nf=2, N_sum=1,
        },                               #             HS field couples to z-component of magnetization
    )
    sims.append(sim)

3. Compile ALF, downloading it first if not found locally. This may take a few minutes:

sims[0].compile()                        # Compilation needs to be performed only once

Checking out branch master
Your branch is up to date with 'origin/master'.

Already on 'master'

Compiling ALF...
Cleaning up Prog/
Cleaning up Libraries/
Cleaning up Analysis/
Compiling Libraries

entanglement_mod.F90:35:2:

   35 | #warning "You are compiling entanglement without MPI. No Renyi entropy results possible, all other observables still work!"
      |  1~~~~~~
Warning: #warning "You are compiling entanglement without MPI. No Renyi entropy results possible, all other observables still work!" [-Wcpp]
ar: creating archive modules_90.a
ar: creating archive libqrref.a

Compiling Analysis
Compiling Program
Compiling program modules
Parsing Hamiltonian parameters
filenames: Hamiltonians/Hamiltonian_Kondo_smod.F90 Hamiltonians/Hamiltonian_Kondo_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Hubbard_smod.F90 Hamiltonians/Hamiltonian_Hubbard_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Hubbard_Plain_Vanilla_smod.F90 Hamiltonians/Hamiltonian_Hubbard_Plain_Vanilla_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_tV_smod.F90 Hamiltonians/Hamiltonian_tV_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_LRC_smod.F90 Hamiltonians/Hamiltonian_LRC_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Z2_Matter_smod.F90 Hamiltonians/Hamiltonian_Z2_Matter_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Spin_Peierls_smod.F90 Hamiltonians/Hamiltonian_Spin_Peierls_read_write_parameters.F90
Link program
Done.

4. Perform the simulations, as specified in each element of sim:

for i, sim in enumerate(sims):
    sim.run()                            # Perform the actual simulation in ALF

Prepare directory "/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.05_Mz=True" for Monte Carlo run.
Create new directory.
Run /Users/fassaad/Programs/ALF/ALF/Prog/ALF.out
 ALF Copyright (C) 2016 - 2022 The ALF project contributors
 This Program comes with ABSOLUTELY NO WARRANTY; for details see license.GPL
 This is free software, and you are welcome to redistribute it under certain conditions.
 No initial configuration

 Setting N_FL = 2 since this is mandatory for Mz-Hubbard model

Prepare directory "/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.1_Mz=True" for Monte Carlo run.
Create new directory.
Run /Users/fassaad/Programs/ALF/ALF/Prog/ALF.out
 ALF Copyright (C) 2016 - 2022 The ALF project contributors
 This Program comes with ABSOLUTELY NO WARRANTY; for details see license.GPL
 This is free software, and you are welcome to redistribute it under certain conditions.
 No initial configuration

 Setting N_FL = 2 since this is mandatory for Mz-Hubbard model

Prepare directory "/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.15_Mz=True" for Monte Carlo run.
Create new directory.
Run /Users/fassaad/Programs/ALF/ALF/Prog/ALF.out
 ALF Copyright (C) 2016 - 2022 The ALF project contributors
 This Program comes with ABSOLUTELY NO WARRANTY; for details see license.GPL
 This is free software, and you are welcome to redistribute it under certain conditions.
 No initial configuration

 Setting N_FL = 2 since this is mandatory for Mz-Hubbard model

5. Calculate the internal energies:

ener = np.empty((len(sims), 2))          # Matrix for storing energy values
dtaus = np.empty((len(sims),))           # Matrix for Dtau values, for plotting
for i, sim in enumerate(sims):
    print(sim.sim_dir)                   # Directory containing the simulation output
    sim.analysis()                       # Perform default analysis
    dtaus[i] = sim.sim_dict['Dtau']      # Store Dtau value
    obs = sim.get_obs()
    ener[i] = obs.iloc[0][['Ener_scal0', 'Ener_scal0_err']]  # Store energy value

/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.05_Mz=True
### Analyzing /Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.05_Mz=True ###
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run
Scalar observables:
Ener_scal
Kin_scal
Part_scal
Pot_scal
Histogram observables:
Equal time observables:
Den_eq
Green_eq
SpinT_eq
SpinXY_eq
SpinZ_eq
Time displaced observables:
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.05_Mz=True
No orbital locations saved.
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.1_Mz=True
### Analyzing /Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.1_Mz=True ###
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run
Scalar observables:
Ener_scal
Kin_scal
Part_scal
Pot_scal
Histogram observables:
Equal time observables:
Den_eq
Green_eq
SpinT_eq
SpinXY_eq
SpinZ_eq
Time displaced observables:
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.1_Mz=True
No orbital locations saved.
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.15_Mz=True
### Analyzing /Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.15_Mz=True ###
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run
Scalar observables:
Ener_scal
Kin_scal
Part_scal
Pot_scal
Histogram observables:
Equal time observables:
Den_eq
Green_eq
SpinT_eq
SpinXY_eq
SpinZ_eq
Time displaced observables:
/Users/fassaad/Programs/ALF/ALF_Tutorial/jupyterbook/source/03-minimal_ALF_run/ALF_data/Hubbard_Square_L1=6_L2=6_Checkerboard=False_Symm=True_T=1.0_U=4.0_Tperp=0.0_beta=5.0_Dtau=0.15_Mz=True
No orbital locations saved.

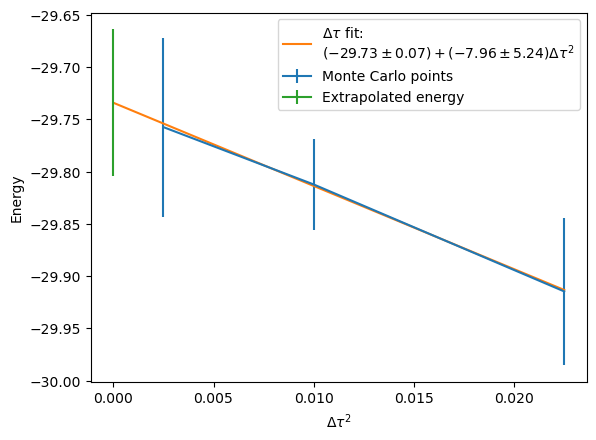

print('For Dtau values', dtaus, 'the measured energies are:\n', ener)

plt.xlabel(r'$\Delta\tau^2$')
plt.ylabel('Energy')
plt.errorbar(dtaus**2, ener[:, 0], ener[:, 1], label='Monte Carlo points')

def func(x, y0, a):
    return y0 + a*x**2
popt1, pcov = curve_fit(func, dtaus, ener[:, 0], sigma=ener[:, 1], absolute_sigma=True)
perr1 = np.sqrt(np.diag(pcov))

xs = np.linspace(0., dtaus.max())
plt.plot(xs**2, func(xs, *popt1), label=r'$\Delta\tau$ fit:'
        f'${popt1[0]:.2f}\pm{perr1[0]:.2f})+({popt1[1]:.2f}\pm{perr1[1]:.2f})$'
        r' $\Delta\tau^2$'
        )
plt.errorbar(0, popt1[0], perr1[0], label='Extrapolated energy')
plt.legend()

5.1.1Exercises¶

Try out the four different combinations for Checkerboard and Symm settings in order to observe their effect on the output and run time. Reference: Sec. 2.3.2 - Symmetric Trotter decomposition
- of the ALF documentation, especially Fig. 2.
