In this example we use the pyALF interface to run ALF on a $4\times 4$ Hubbard square lattice, with the Mz choice of Hubbard-Stratonovich transformation, at $U/t=4$ , half-band filling, and inverse temperature $\beta t = 5$ .

A Monte Carlo simulation starts from an initial (typically random) auxiliary-field configuration, which is generally far from equilibrium. The first bins therefore do not sample the equilibrium distribution and must be discarded before performing the analysis; the number of bins discarded is denoted N_skip.

Below we go through the steps of running a simulation, visualizing the equilibration (warmup) transient in the raw bins of the energy and spin-spin correlation, and quantitatively estimating a safe value of N_skip by tracking how the jackknife estimate of the energy changes as N_skip is increased. This mirrors the approach used to estimate the autocorrelation time, but scans N_skip instead of N_rebin.

1. Import Simulation class from the py_alf python module, which provides the interface with ALF, as well as mathematics and plotting packages:

from py_alf import Simulation, ALF_source      # Interface with ALF
from py_alf.utils import find_sim_dirs         # Function for finding QMC bins
from py_alf import check_warmup                # Function for checking warmup time
from py_alf.ana import ReadObs, jack, error

%matplotlib widget

import numpy as np                        # Numerical library
import matplotlib.pyplot as plt           # Plotting library
alf_src = ALF_source(branch='master')     # Obtain ALF source code

2. Create an instance of Simulation, specifying the necessary parameters. Here we use a moderate NSweep so that bins are close to statistically independent, keeping the focus on the initial equilibration transient rather than on bin-to-bin autocorrelation:

sim = Simulation(
    alf_src,
    'Hubbard',                    # Hamiltonian
    {                             # Model and simulation parameters
        'Lattice_type': 'Square', #    Lattice type
        'L1': 4,                  #    Lattice length in the first unit vector direction
        'L2': 4,                  #    Lattice length in the second unit vector direction
        'Checkerboard': False,    #    Whether checkerboard decomposition is used or not
        'Symm': True,             #    Whether symmetrization takes place
        'ham_T': 1.0,             #    Hopping parameter
        'ham_U': 4.0,             #    Hubbard interaction
        'beta': 5.0,              #    Inverse temperature
        'Dtau': 0.1,              #    Trotter time step, Ltrot=beta/Dtau
        'Mz': True,               #    If true, sets the M_z-Hubbard model: Nf=2, N_sum=1,
                                  #             HS field couples to z-component of magnetization
        'NSweep': 5,              #    Number of sweeps per bin
        'NBin': 1500,              #    Number of bins
    },
)

3. Compile ALF, downloading it first if not found locally. This may take a few minutes:

sim.compile()                            # Compilation needs to be performed only once

Checking out branch master
Your branch is up to date with 'origin/master'.
Compiling ALF...
Cleaning up Prog/
Cleaning up Libraries/
Cleaning up Analysis/
Compiling Libraries

Already on 'master'
entanglement_mod.F90:35:2:

   35 | #warning "You are compiling entanglement without MPI. No Renyi entropy results possible, all other observables still work!"
      |  1~~~~~~
Warning: #warning "You are compiling entanglement without MPI. No Renyi entropy results possible, all other observables still work!" [-Wcpp]
ar: creating modules_90.a
ar: creating libqrref.a

Compiling Analysis
Compiling Program
Compiling program modules
Parsing Hamiltonian parameters
filenames: Hamiltonians/Hamiltonian_Kondo_smod.F90 Hamiltonians/Hamiltonian_Kondo_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Hubbard_smod.F90 Hamiltonians/Hamiltonian_Hubbard_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Hubbard_Plain_Vanilla_smod.F90 Hamiltonians/Hamiltonian_Hubbard_Plain_Vanilla_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_tV_smod.F90 Hamiltonians/Hamiltonian_tV_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_LRC_smod.F90 Hamiltonians/Hamiltonian_LRC_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Z2_Matter_smod.F90 Hamiltonians/Hamiltonian_Z2_Matter_read_write_parameters.F90
filenames: Hamiltonians/Hamiltonian_Spin_Peierls_smod.F90 Hamiltonians/Hamiltonian_Spin_Peierls_read_write_parameters.F90
Link program
Done.

4. Perform the simulation and the default analysis:

sim.run()                                # Perform the actual simulation in ALF
sim.analysis()                           # Perform default (N_skip=0) analysis
obs = sim.get_obs()
obs.iloc[0][['Ener_scal0', 'Ener_scal0_err']]  # load results

Prepare directory "/home/hparussel/ALF_Tutorial/jupyterbook/source/05-caveats/ALF_data/Hubbard_Square_L1=4_L2=4_Checkerboard=False_Symm=True_T=1.0_U=4.0_beta=5.0_Dtau=0.1_Mz=True" for Monte Carlo run.
Create new directory.
Run /home/hparussel/ALF_Tutorial/jupyterbook/source/05-caveats/ALF/Prog/ALF.out
 ALF Copyright (C) 2016 - 2022 The ALF project contributors
 This Program comes with ABSOLUTELY NO WARRANTY; for details see license.GPL
 This is free software, and you are welcome to redistribute it under certain conditions.
 No initial configuration

 Setting N_FL = 2 since this is mandatory for Mz-Hubbard model

### Analyzing /home/hparussel/ALF_Tutorial/jupyterbook/source/05-caveats/ALF_data/Hubbard_Square_L1=4_L2=4_Checkerboard=False_Symm=True_T=1.0_U=4.0_beta=5.0_Dtau=0.1_Mz=True ###
/home/hparussel/ALF_Tutorial/jupyterbook/source/05-caveats
Scalar observables:
Ener_scal
Kin_scal
Part_scal
Pot_scal
Histogram observables:
Equal time observables:
Den_eq
Green_eq
SpinT_eq
SpinXY_eq
SpinZ_eq
Time displaced observables:
Den_tau
Green_tau
SpinT_tau
SpinXY_tau
SpinZ_tau
/home/hparussel/ALF_Tutorial/jupyterbook/source/05-caveats/ALF_data/Hubbard_Square_L1=4_L2=4_Checkerboard=False_Symm=True_T=1.0_U=4.0_beta=5.0_Dtau=0.1_Mz=True
No orbital locations saved.

Ener_scal0       -13.197161
Ener_scal0_err     0.011286
Name: /home/hparussel/ALF_Tutorial/jupyterbook/source/05-caveats/ALF_data/Hubbard_Square_L1=4_L2=4_Checkerboard=False_Symm=True_T=1.0_U=4.0_beta=5.0_Dtau=0.1_Mz=True, dtype: object

5. Visualize the equilibration transient.

We read the raw (unrebinned) Monte Carlo bins of Ener_scal, Kin_scal, Pot_scal, $S_{Z} (\pi, \pi)$ , $S_{XY} (\pi, \pi)$ and $S_{XYZ} (\pi, \pi)$ directly and plot them against the bin number. If the first bins are still relaxing towards equilibrium, they will visibly deviate from the fluctuating steady-state behaviour of the later bins:

(a) First, we need to define the custom observables $S_{Z} (\pi, \pi)$ , $S_{XY} (\pi, \pi)$ and $S_{XYZ} (\pi, \pi)$ :

custom_obs = {}  # defining custom_obs


def obs_k(obs, back, sign, N_orb, N_tau, dtau, latt,
          ks=((0., 0.),), mat=None):
    """Mean of correlation function at one, or multiple k-points.

    Calculates integral over tau (=susceptibility) if time-displaced
    correlation is supplied.

    Parameters
    ----------
    obs : array of shape (N_orb, N_orb, N_tau, latt.N)
        Correlation function, the background is already subtracted.
    back : array of shape (N_orb,)
        Background of Correlation function.
    sign : float
        Monte Carlo sign.
    N_orb : int
        Number of orbitals per unit cell.
    N_tau : int
        Number of imaginary time slices. 1 for equal-time correlations.
    dtau : float
        Imaginary time step.
    latt : py_alf.Lattice
        Bravais lattice object.
    ks : list of k-points, default=[(0., 0.)]
    mat : array of shape (N_orb, N_orb), default=None
        Orbital structure. Default: Trace over orbitals.

    """
    if mat is None:
        mat = np.identity(N_orb)
    out = 0
    for k in ks:
        n = latt.k_to_n(k)

        if N_tau == 1:
            out += (obs[:, :, 0, n] * mat).sum()
        else:
            out += (obs[..., n].sum(axis=-1) * mat).sum()

    return out / len(ks)


# Correlation of Spin z-component at k=(pi, pi)
custom_obs['SpinZ_pipi']= {
'needs': ['SpinZ_eq'],
'function': obs_k,
'kwargs': {'ks': [(np.pi, np.pi)]}
}
# Correlation of Spin x+y-component at k=(pi, pi)
custom_obs['SpinXY_pipi']= {
'needs': ['SpinXY_eq'],
'function': obs_k,
'kwargs': {'ks': [(np.pi, np.pi)]}
}

# Correlation of total Spin at k=(pi, pi)
custom_obs['SpinXYZ_pipi']= {
'needs': ['SpinT_eq'],
'function': obs_k,
'kwargs': {'ks': [(np.pi, np.pi)]}
}

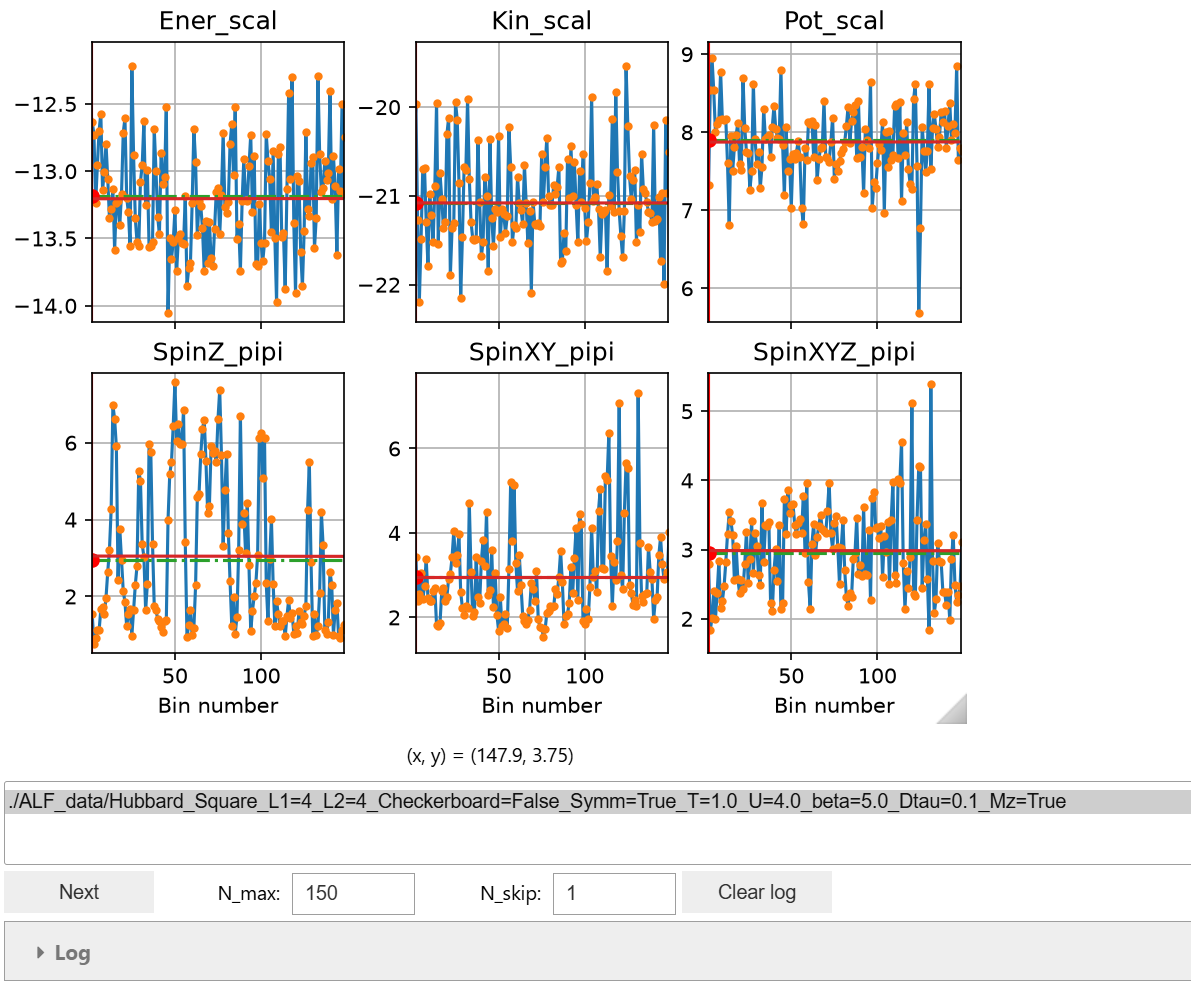

(b) Subsequently, we define the directories containing the data. Then, we plot the quantities with the pyALF check_warmup widget which allows us to vary the N_skip for the analysis and automatically updates the corresponding value in the parameters file:

dirs = find_sim_dirs()  # Setting the directories to be considered

warmup_widget = check_warmup(
    dirs,
    ['Ener_scal', 'Kin_scal', 'Pot_scal',
    'SpinZ_pipi', 'SpinXY_pipi', 'SpinXYZ_pipi'],
    custom_obs=custom_obs, gui='ipy'
)

warmup_widget

6. Quantify a safe N_skip.

We compute the jackknife estimate of $S_{XYZ} (\pi, \pi)$ while discarding an increasing number of leading bins, N_skip. While the discarded bins still include the equilibration transient, the estimate will drift; once enough bins have been discarded, it should fluctuate around a stable value:

# Largest N_skip considered
N_skip_max = 150

means = np.empty(N_skip_max)
errs = np.empty(N_skip_max)

# Read raw bins of SpinT_eq
R = ReadObs(sim.sim_dir, "SpinT_eq", bare_bins=True)
bins = R.all()

obs, back, sign, N_orb, N_tau, dtau, latt = bins

spinT_pipi_bins = np.array([
    obs_k(
        obs[i],
        back[i],
        sign[i],
        N_orb,
        N_tau,
        dtau,
        latt,
        ks=[(np.pi, np.pi)]
    ).real / sign[i].real
    for i in range(len(sign))
])

for N_skip in range(N_skip_max):
    J = jack(
        spinT_pipi_bins,
        par=None,
        N_skip=N_skip,
        N_rebin=1
    )
    means[N_skip], errs[N_skip] = error(J)

plt.figure()
plt.xlabel(r'$N_{\mathrm{skip}}$')
plt.ylabel(r'$S_{XYZ}(\pi,\pi)$')
plt.errorbar(range(N_skip_max), means, yerr=errs, fmt='.-')

<ErrorbarContainer object of 3 artists>

If the earliest bins still reflect the initial, non-equilibrium configuration, the energy estimate drifts as N_skip increases past them; once N_skip exceeds the number of bins needed to equilibrate, the estimate settles into a stable value (within error bars). A safe choice of N_skip for the final analysis (e.g., via sim.analysis(N_skip=...)) is any value at or beyond this point.

5.3.1Exercises¶

Start the plot in Cell 12 from bin 1 instead of discarding anything, and compare it with the version using the N_skip you determined in Cell 14 to visually confirm the transient is excluded.
Repeat the analysis with a larger beta (lower temperature), which typically requires more sweeps to equilibrate, and check whether a larger N_skip is needed.
Repeat the analysis for a different observable (e.g., Part_scal) to see whether it equilibrates faster or slower than the energy.
